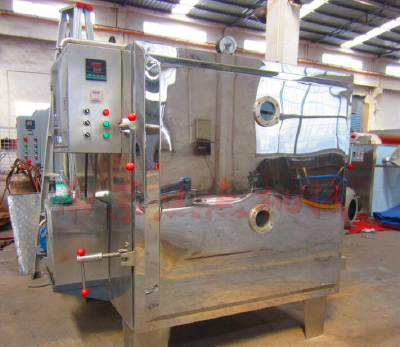

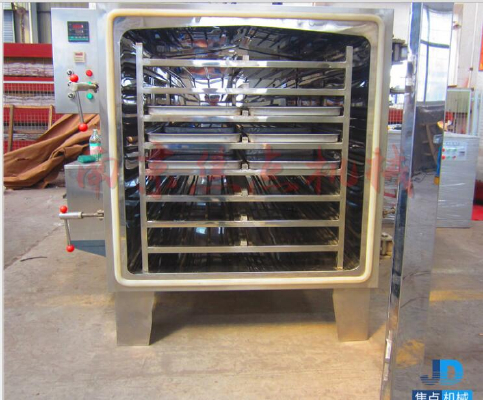

FZG series vacuum drying oven

A, equipment introduction:

Alleged vacuum drying, it is will be dry material under vacuum condition, heated drying. Vacuum drying oven is the use of vacuum pump for suction wet, make indoor work form a vacuum, speed up the drying speed. The box is used to decompose at high temperature, aggregation and metamorphism of low temperature drying of thermal sensitive material. Vacuum drying oven is widely used in pharmaceutical, chemical, food, electronic industries, are fast dry goods, not to damage the immanent quality of dry goods.

Second, the equipment:

1. When the heating temperature is constant, improve the degree of vacuum, can accelerate the drying rate.

2. When a constant vacuum degree, improve the heating temperature, can accelerate the drying rate.

3. Improve the vacuum degree, and improve the heating temperature, greatly accelerate the drying rate.

If the condenser, the evaporation of the solvent recovery by condenser, is a kind of commonly used drying equipment.

If the water circulation pump unit, but the condenser, the energy savings and investment.

Three, characteristics of the equipment:

1. Vacuum under the boiling point of material solution is reduced, the driving force of heat transfer in the evaporator increases, so to certain heat transmission, can save the area of heat transfer in the evaporator

2. The heat source of evaporation operation can use low pressure steam or waste heat steam (users special requirements by water or oil heating, the manufacturer can be designed specifically for you.

3. The evaporator of the heat loss can be reduced

4. Apply to decompose at high temperature, aggregation, and bad drying of thermal sensitive material

5. Can be disinfected before drying, drying in the process of no with any impurity content

6. Belong to the static vacuum dryer, dry solid materials won't destroy the form

4, equipment, heating mode:

1, steam heating: the heating tube are all made of stainless steel coil heating, material: 304, specifications for 42 x 3, ф ф 32 * 2, 3, ф 22 coil into S type, uniform heating, the drying rate is fast.

2, hot water heating: the heating tube are all made of stainless steel coil heating, material: 304, specifications for 42 x 3, ф ф 32 * 2, 3, ф 22 coil into S type, uniform heating, drying speed is fast, can automatically by the boiler water supply hot water, heating or use water tank, make use of the heat pump cycle.

3, heat conduction oil heating tube are all made of stainless steel coil heating, material: 304, specifications for 42 x 3, ф ф 32 * 2, 3, ф 22 coil into S shape, uniform heating, fast drying speed, heat conduction oil tank heating can be used, use high temperature resistant pump cycle.

4, electric heating, drying car 30 * 30 * 1.5 stainless steel pipe welding, heating tube material for stainless steel, the W production, each layer of uniform distribution, the intelligent temperature control instrument temperature control, LCD digital display, small impact temperature, high steady state accuracy.
