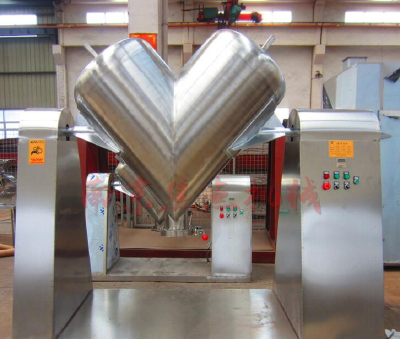

V type mixing machine

Product introduction

This machine can be used for the homogeneous mixing of dry powder or granular materials with good fluidity, and the dissolution and volatilization of the materials are not produced during the mixing process. This machine is designed to be more reasonable than the general mixing machine, the mixing efficiency is high, and the operation is more simple. The mixing tube has unique structure, high mixing efficiency, no dead angle, the cylinder is made of stainless steel material, and the inner and outer walls are polished, the appearance is beautiful, the mixing is uniform and the application is wide, and the GMP standard is in accordance with the standard. And can be used in accordance with the requirements of the customer forced mixer, in order to fit a fine powder, block containing a certain amount of water mixed with the material.

Two, working principle

The V barrel is made up of two cylinders which are welded by V type, and the shape of the container is not symmetrical with respect to the axis. Because the rotary motion, powder particle in the tilt cylinder, continuous repeated alternately, division, merger, material randomly from the V shaped zone transfer to another district, also between powder particles slip, multiple stacking space, particle distribution on the surface, this is repeated shear and diffusion, so as to achieve the destination blend.

Three, function introduction

V mixer can be used for the homogeneous mixing of dry powder or granular materials with good fluidity, which is suitable for the industries of medicine, food, feed, fertilizer, fuel, ore and so on.

Medicine: capsule particles, Chinese medicine spices, powder or granular in the mixture of Chinese herbal medicine, etc..

Feed: feed on a variety of fish, poultry feed, feed wild animals and birds feed all kinds of feed mixing.

Food: such as spices, additives, vitamins, all kinds of sugar products, etc..

Fuel: all kinds of firecrackers, fireworks and other raw materials mixture.

Ore: can be a variety of powder or granular ore, such as mixing.

Four, operation process

1, check the machine:

Inspection before operation of equipment:

Check the internal mixer without foreign body, hopper wall should be dry, open and close the cap feed discharging cover.

Check the mixing machine around should be free of obstacles, so as to avoid mixing machine running when the magnetic into obstacles, causing accidents.

2, preparation: prepare various materials to mix materials must be dry, remember. If the material is not dry, you can not use this type of mixing machine, you can use the trough type mixer, or the first oven to dry and then carry out this operation

3, a material: the material from the feeding port to join, generally only 50% of the total volume, and the left and right sides, so as to mix evenly, and then tighten the charging port cover. (if the mixing amount is large, can be used by the company's vacuum feeding machine and V type mixing machine supporting the use of

4, mix: turn on the power switch, start mixing material.

5, material: open the discharge valve, with the provisions of the container loading in the outlet, until exhausted in the hopper.
