Two dimensional motion mixing machine

Equipment Overview and application:

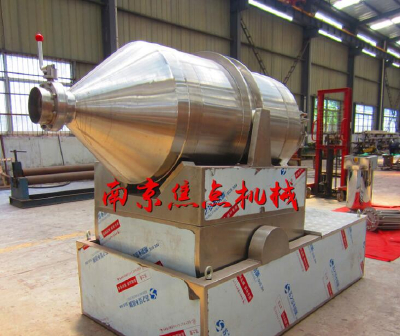

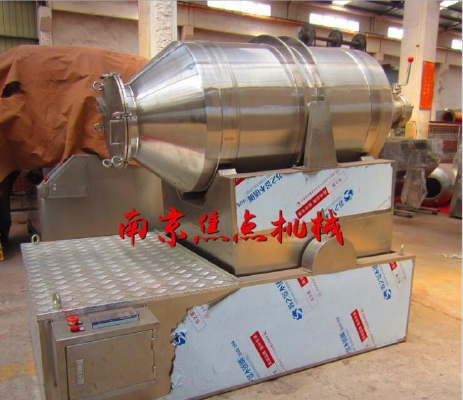

EYH type two-dimensional motion mixer mainly consists of three parts: rotor, swing frame and frame. The rotary drum is arranged on the swing frame, and is supported by four rollers and is axially positioned by two gear wheels. In the four support rollers, the two wheel drive power drive system by the rotating the drum rotation, swing frame by a group of crank rocker mechanism to drive, the crank rocker mechanism is arranged on the frame and the swinging rack is supported on the frame by the bearing assembly.

EYH type two-dimensional motion mixer is widely used in pharmaceutical, chemical, food, dye, feed, fertilizer, pesticide and other industries, especially for large tonnage (1000L ~ 10000L) of all kinds of powder, granular materials mixing.

Two, equipment principles and characteristics:

The rotating cylinder of the EYH type two-dimensional motion mixing machine can simultaneously carry out two motions, one for the rotation of the cylinder and the other for the rotating cylinder with the swing of the swing frame. Blending material in the drum with the drum to rotate, flip, mixed at the same time, along with the swinging of the cylinder and left to right back and forth doped mix sports, under the interaction of the two movement, material in a short time get mixed fully.

The discharge of the mixing drum is provided with a spiral blade, so the mixing machine has the characteristics of rapid mixing, large mixing amount, convenient production and the like. EYH two dimensional mixer is suitable for mixing all the powder and granular materials.

Three, equipment advantage:

1, feed port cover plate is arranged on the vacuum material interface, and vacuum feeder quick connect, realize automatic feeding, reducing the labor intensity, improves the efficiency, but also realize the dust-free operation, no pollution to the environment of the workshop, in accordance with the GMP standard.

2, the mixing cylinder in the rotation of the same time for the swing movement, so the mixing efficiency is high, the material mixture uniformity can reach 99%.

3, the maximum angle of 30 degrees, to prevent the phenomenon of blocking phenomenon, but also easy to produce. In the mixing cylinder is provided with a discharge guide plate, a material fast and completely, without residue.

4, out of the material using a vacuum butterfly valve, easy to operate, the amount of material can be controlled, no dust.

5, the feeding side is equipped with a step and feeding platform, the panel is a stainless steel pattern plate, non slip solid, easy to operate personnel to feed the equipment.

6, electric control box sealing is good, dust and moisture, improve the safety performance of electrical control and service life, set, easy to operate.

7, the device is made of high quality stainless steel production, stent outsourcing stainless steel, both inside and outside by precision polishing treatment, the surface is clean and easy to clean, no dead angle, in accordance with the requirements of GMP.
