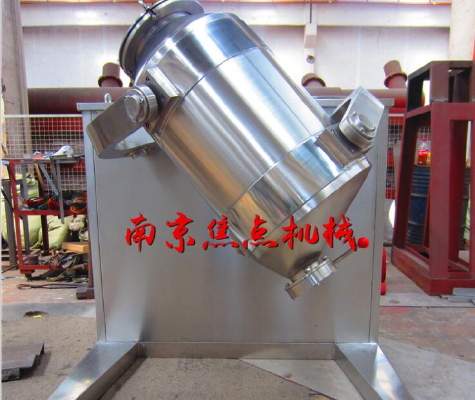

Three-dimensional motion mixing machine
First, the use of:
Three-dimensional mixing machine formerly known as three dimensional shaker mixer, also known as the oscillating mixer, is currently the domestic advanced a powder mixing equipment, the machine for pharmaceutical industry, chemical industry, light industry, electrical, mechanical, mining and defense industry and scientific research institutes of powdery, granular materials in the high uniform mixing.
Used in the pharmaceutical industry, in compliance with GMP certification.
Two, working principle:
Three-dimensional motion mixing machine principle of work and the traditional rotary mixer is not the same, it in the 3D space cube as unique translation, rotation, rock movement, so that the material in the motion state of "flow rotation - Translation - upside down fall" complex in the mixing barrel, that is, the so-called TURBULA; a stream of alternating pulse and continuous continue to push the material, generated by the motion of turbulent dynamic changes the energy gradient, so that the mixed material in the particle motion state is not, each particle in the frequent movement of diffusion constant change oneself position, produce a satisfactory effect of mixing.
There are two mixed materials in the bogey: a hybrid motion in the presence of centrifugal force, it can make density cannot be mixed material segregation; the second is mixed materials into clumps and accumulation of movement, so that the materials can not be effective diffusion admixture, the motion state of the three dimensional shaker mixer overcomes the disadvantages of, it is at present the ideal high efficiency of mixing equipment.
The mixing cylinder multi operation materials, there is no centrifugal force, without the specific gravity segregation and stratification, accumulation of the phenomenon. Each component can be a disparity in the weight ratio of the mixing rate of 99.9%, maximum load factor of up to 0.9 (ordinary mixer 0.4-0.6). Covers an area of small, fuel-efficient hybrid, the machine in operation due to the multi way mixed, accelerate the flow and diffusion effect, to solve the general mixer by the action of the centrifugal force generated by material proportion segregation product tight phenomenon, no mixing angle, can effectively ensure the mixed materials of the highest quality.
Three, structural characteristics:
The machine is composed of a machine base, a driving system, a three-dimensional motion mechanism, mixing barrel, frequency conversion motor, feed inlet and discharging port, electrical control system, material and direct contact with mixing cylinder uses made of high quality stainless steel material and the inner wall of the barrel body by precision polishing.
Base:
The machine base is composed of type steel, the outer surface of the stainless steel complex. The frame structure is reasonable, stable and effective machine, fully meet the requirements of the drug GMP.
Drive system:
The machine drive system comprises a motor, a transmission deceleration system, frequency converter and the man-machine interface and PLC control system composed of transmission deceleration system, concise design, stable and reliable transmission, inverter effectively buffer load start of inertia and can accurately select stop charging barrel of the best position, to facilitate the feed or feed.
Three dimensional motion mechanism:
In order to make the mixing barrel can in three-dimensional space for complex translational, rotational, rock movement and the machine design a unique initiative, driven shaft and the second shaft end 3D motion rocker arm structure; the driven shaft for flexible design, the machine movement more flexible, lightweight; debugging and the maintenance is more convenient.
Y type three-dimensional motion rocker arm mechanism adopts all stainless steel materials, and the polishing treatment, beautiful shape, can be used in 100 Grade 100 thousand clean area.
Mixing barrel:
This machine mixing barrel is arranged in two space intersection is perpendicular to each other, respectively by Y type three-dimensional protection rocking arm is connected with a driving shaft and a driven shaft, mixed barrel is composed of a cylinder, cone feed end and eccentric cone a feed end and the feed port and discharge device. The mixing barrel is made of high quality stainless steel, and the inner wall and outer wall of the mixing drum are polished. The cylinder has good air tightness, flat surface, no dead angle, no residue, easy to clean. The feed inlet is sealed by clamping flange, which is easy to operate and has good air tightness. The design of the unique design of the confidence cone, asymmetric design is more conducive to the uniform mixing of materials, discharge, the discharge port is in the lowest position of the mixing container, while the material on the.
Discharge valve using the factory's unique design of butterfly valve, sealing performance is good, the material is convenient, no residue.
