Double cone mixing machine

First, the use of:

The machine for efficient mixing equipment can be used in the pharmaceutical, chemical industry, light industry, machinery and electronics, ore treatment, defense industry, agriculture and animal husbandry, research and other business units, powdery and granular materials with high mixing, material in the mixing process in no centrifugal force, without the specific gravity segregation and stratification, accumulation phenomenon. Each component can be evenly mixed in hanging bead weight ratio, loading coefficient can reach more than 40%, not more than 60%. This machine mixing flow is better.

Two, performance and applications:

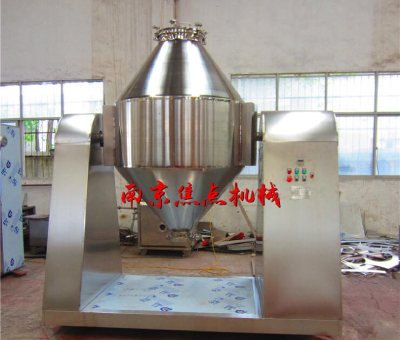

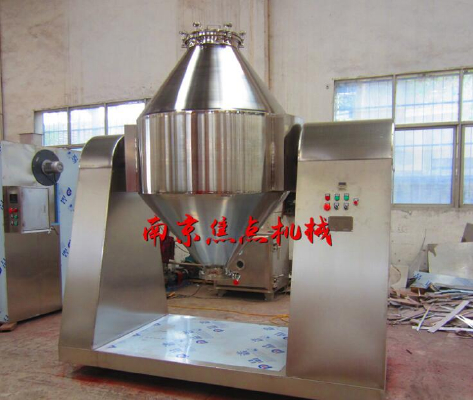

The structure of the machine is composed of a double cone barrel body, stent, manhole, the discharge valve, drive motor, a bracket shell, electrical control system, so that the material very homogeneous mixing is achieved, this structure is reasonable and novel, and the general mixer can not achieve. Suitable for use in food, pharmaceuticals, pesticides, zinc oxide, detergent, veterinary medicine, compound fertilizer, feed, petroleum, metallurgy, mining, building materials industry, paints, dyes, pigments, additives, calcium carbonate, biology, ceramics, chemicals, flavors and fragrances, chicken, spices, tea, grain, corn, plant fiber, milk powder, cocoa powder, flour, coffee, glucose and other industries.

Three, structural characteristics:

1, the device adopts the structure of the new cone cylinder, more general mixing effect is good.

2, delicate structure, beautiful appearance, can use the building height of four meters in the workshop use.

3, material mixing, no mechanical extrusion and strong wear, can keep the material particles complete, the material is convenient, easy to clean.

4, with automatic timing device, can be set for 0 to 60 minutes to automatically stop.

5, the use of stainless steel butterfly valve, mixing process in the closed state without dust leakage and dust phenomenon.

6, using the gravity diffusion principle of mixing, the material of the low pressure feed, will not produce shear crushing material.

7, the tube is made of high quality stainless steel, and the inner and outer walls are all polished, the material is free from pollution, the power consumption is small, and the cleaning is convenient.

8, simple operation, easy cleaning, suitable for food and pharmaceutical use G.M.P.

9, large volume of mixing machine can be configured on the feeding system or feeding platform, improve work efficiency and improve the working environment.
